- Place of Origin: Xuzhou China
- Brand Name: XCMG TRUCK CRANE
- Model Number: XCT90

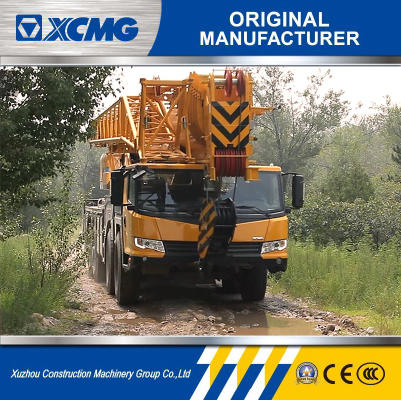

XCMG XCT90 truck crane
Overall Dimensions: 13985x2780x3990mm
Wheel base: 2000 4000 1500mm
Track: 2354×2354/2291×2291mm
Front overhang: 2525mm
Rear overhang: 2310mm
Total mass in travel configuration: 48000kg
Axle load: Axle 1 12000kg
Axle 2 12000kg
Axle 3 12000kg
Axle 4 12000kg
Chassis engine model: MC11.40-50 WP12.375E50
Engine rated power: 297/1900 276/1900 kW/(r/min)
Engine rated torque: 1900/1000~1400 1800/1000~1400 N.m/(r/min)
Max. travel speed: 90 km/h
Min. travel speed: 1.7~3 km/h
Min. turning diameter: 20 m
Min. turning diameter at boom tip: 25.2 m
Min. ground clearance: 367mm
Approach angle: 21°
Departure angle: 15°
Braking distance (at 30 km/h ): ≤10m
Max. grade ability: 45%
Fuel consumption per 100 km: 45 L
Welcome inquiry!
WhatsApp/cellphone/wechat: 8615965621996
